A custom jar is incomplete without an aesthetic lid that enhances the visual appeal of the container. But how do you ensure that the lid and jar are compatible? The secret lies in the thread on the neck of the jar.
In this guide, Gidea PAC will discuss cosmetic thread sizes and dimensions to help you find the perfect fit for your customized jars.
A quick overview of the topics covered in this article.
What Are Jar Dimensions?
The dimensions of a cosmetic jar include measurements from different angles, such as the length, width, and diameter of the jars and lids. These dimensions dictate how much product the jar can hold.

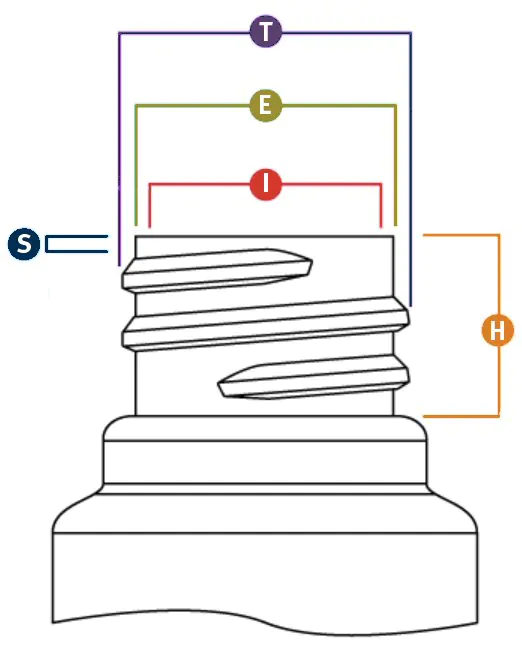

Additionally, the thread of the cosmetic jar is classified into different dimensions:
| Dimension | Description |
|---|---|
| T Dimension | The diameter of the outermost threads on both sides of the neck. |
| E Dimension | The diameter from the uppermost part of the neck. |
| S Dimension | The distance between the uppermost part of the neck and the first thread. |
| I Dimension | The diameter of the neck measured from its inner surface. |
| H Dimension | The total length of the neck. |
How to understand neck size?
The neck size is determined by two values separated by a “-” or “/”. The first is a 2-digit number indicating the outer diameter of the thread, and the second is a 3-digit number representing the thread type.
For example, in the size “20-400”, “20” indicates the diameter of the jar’s mouth, and “400” specifies the thread style.
Common Jar Threads, Finishes and Dimensions
| Thread Size | Diameter | Use | Capacity |
|---|---|---|---|
| 33 – 400 | 33 mm | Small jars with wide mouths like lip balms | 0.24 to 1 ounce |
| 48 – 400 | 48 mm | Slightly larger jars, suitable with plastic lids | Double that of 33-400 |
| 53 – 400 | 53 mm | Larger plastic lids or metal caps for jars of 1 to 2 ounces | 1 to 2 ounces |
| 58 – 400 | 58 mm | Large jars of 4 to 8 ounces | Medium to large-sized containers |
| 89 – 400 | 89 mm | Jars for face powders, body lotions, hair masks | 4 to 30 ounces |
| Size Category | Capacity | Thread Size |
|---|---|---|
| Extra Small | 5ml – 20ml | 33-400 |
| Small | 30ml – 50ml | 48-400 |
| Medium | 60ml – 120ml | 53-400 |
| Large | 120ml – 200ml | 58-400 |
| X-Large | Over 210ml | 89-400 |
Choosing the Right Thread Size and Dimension
Depending on the product’s quantity, consistency, texture, and the size of the jar’s mouth, you can select the appropriate thread size and dimensions.
While you can determine this yourself, consulting with expert cosmetic manufacturers can ensure perfect fitting and compatibility. For this, contact Gidea PAC to get the ideal thread size and dimensions for your cosmetics.
